The open grid pattern allows for proper airflow, allowing damp athletic gear to dry faster and ultimately reducing odor build-up. The heavy-duty construction coupled with the integrated, hinged seat makes these lockers the perfect addition to any athletic facility.

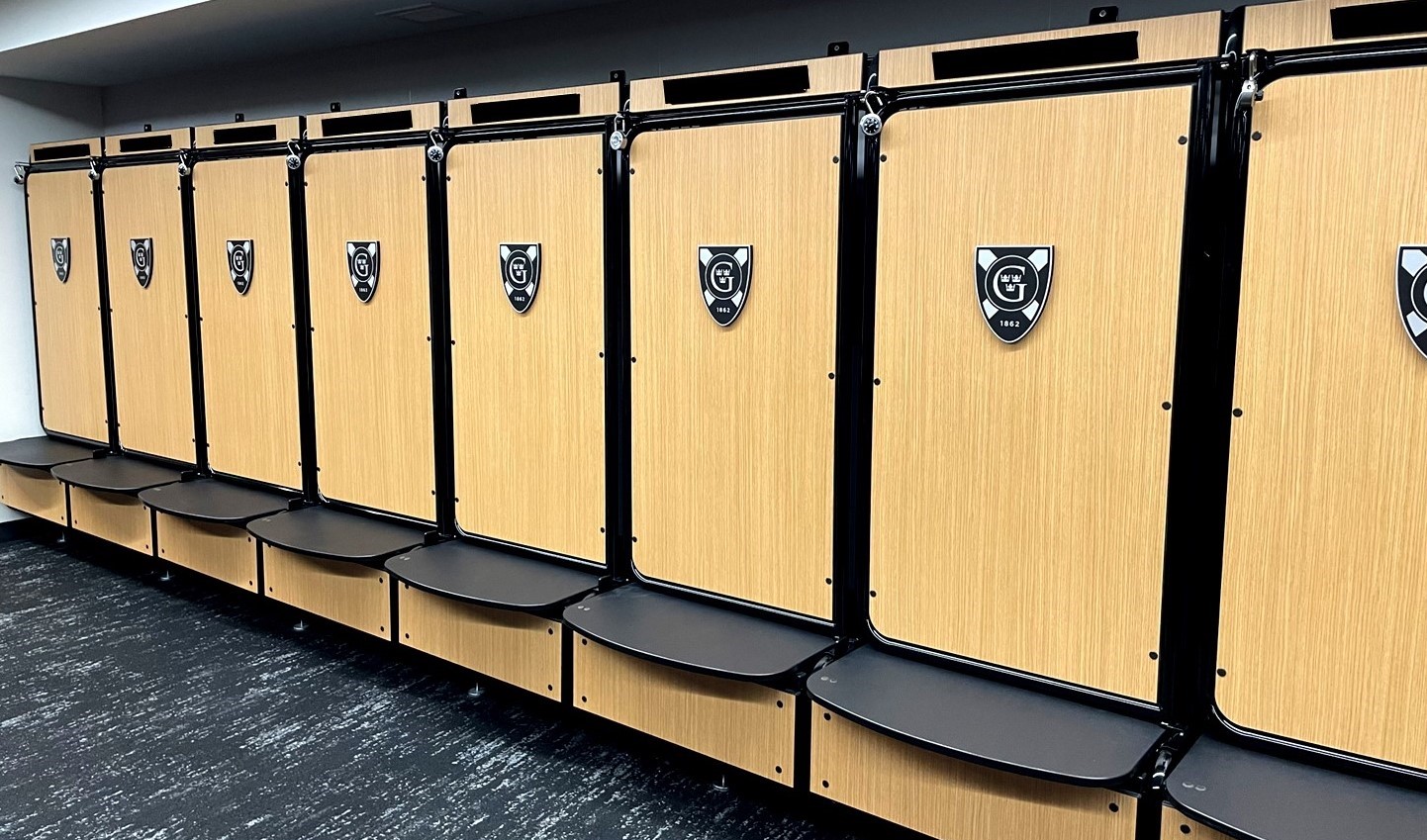

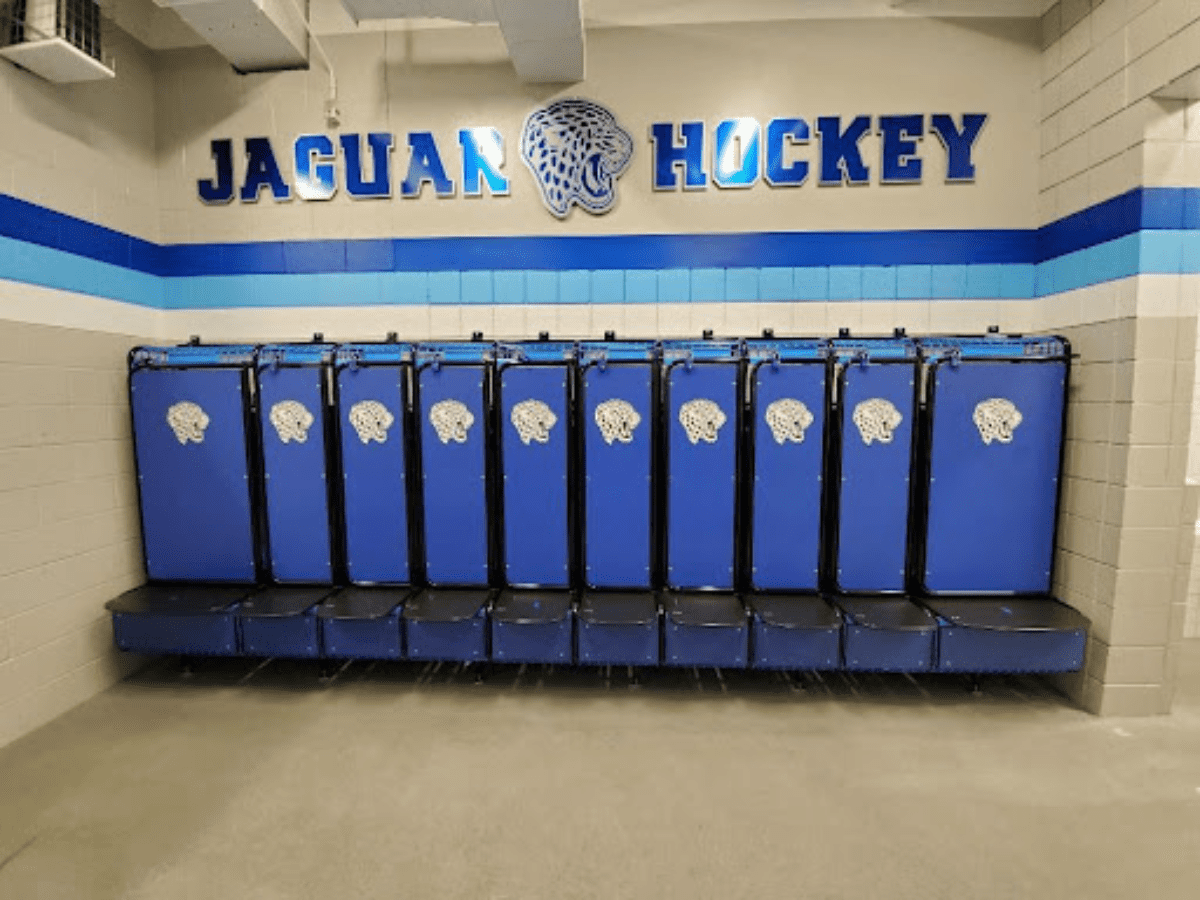

GridIron Team Wall Mount Lockers
GearGrid’s Wall Mount GridIron Team Lockers are built to stand up to the demands of athletes. The lockers are designed with customization and modularity in mind to meet each athlete’s unique storage challenges.
Wallspace Calculator
We’ve made it easy for you to calculate the number of Wall Mount Lockers that will fit a specified wall space. Just type in the length of your wall in inches for the calculation to generate.
Wallspace Calculator
To determine how much overall wall space is needed for a specified number of Wall Mount Lockers, simply multiple the number of lockers you want in a single run by the locker width and add 1.25” (Example: 6 Lockers x 24”W = 144” + 1.25” = 145.25”).
For additional assistance or to answer any questions, please contact us by emailing us at sales@geargrid.com or calling us at 888-643-6694 and we’d be happy to help.
Your Wall Length in Inches (“)
Calculations:
18” Models will fit your wall
0
20” Models will fit your wall
0
24” Models will fit your wall
0
30” Models will fit your wall
0
36” Models will fit your wall
0
Available sizes:
Width – 18″, 24″ and 30″
Depth – 30-½”
Height – 70″ (77″ to 80″ overall height when mounted)
- Frame: Heavy-duty 1-¼” OD, 16-gauge steel tube
- Body Panels: High-strength ¼” steel wire, 2″ x 2″ square grid pattern
- Back Grids (Optional): High-strength ¼” wire, 2″ x 2″ square grid pattern
- Secure Doors (Optional): Heavy-duty, welded 1-¼” OD, 16-gauge steel tube with 1.5″ x 1.5″, 8-gauge welded wire panel or heavy-duty, welded 1-¼” OD, 16-gauge steel tube with solid panel MDF core laminate
- Door Swing Options:
- No Door Stop (Optional). Door will swing 180 degrees
- With Door Stop (Standard). High strength, steel door stop secured to locker side panel, next to seat.
- Shelves/Hooks: Heavy-duty, full-width, ¾” MDF core laminate or HDPE mounted to side panels with heavy-duty hook mounts
- Adjustability: Shelves adjustable in 2″ increments

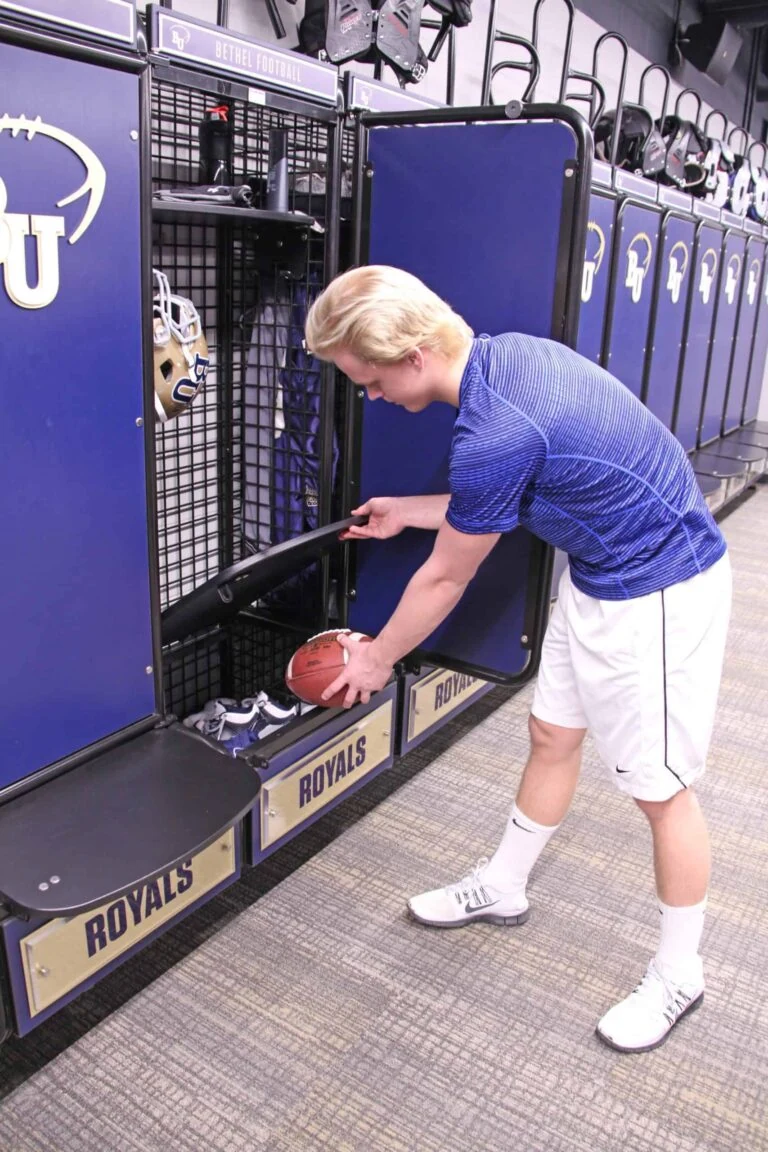

- Seat: Integrated, lifting, full-width and depth seat (¾” MDF core laminate or HDPE), mounted to heavy-duty, welded hinge
- Nameplate Holder: 20-gauge sheet metal. 2″ x 12-1/8″ Nameplate Holder for 18″, 24″ & 30″ lockers with Secure Doors and 24″ & 30″ lockers without Secure Doors. 2″ x 8-1/8″ Nameplate Holder for 18″ lockers without Secure Doors. All GridIron Team Locker Nameplate Holders are placed on the top of each locker opening. *Note: Custom printed nameplate sold separately.
- Mounting: Wall mount
- Finish: Super Durable TGIC powder coat
- Colors: 15 standard colors
- Shipping: Ships knocked down for ease of handling and reduced shipping costs
- Assembly: With simple tool it’s fast and easy
- Options:
- Two-tone color finish
- Custom colors
- Fixed Shoulder Pad and Helmet Topper
- Equipment accessories
- Custom logo engraving and panel options
- Wire grid Back Panel
- Black HDPE Back Panel
- Laminate Back Panel
